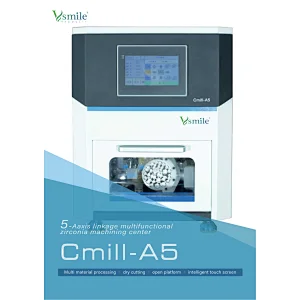

Cmill-A5 5 Axis Dental Milling Machine
Cmill-A5 5 Axis Dental Milling Machine
Cmill-A5 5 Axis Dental Milling Machine
Cmill-A5 5 Axis Dental Milling Machine
Cmill-A5 5 Axis Dental Milling Machine
Cmill-A5 5 Axis Dental Milling Machine
Cmill-A5 5 Axis Dental Milling Machine
Cmill-A5 5 Axis Dental Milling Machine
Cmill-A5 5 Axis Dental Milling Machine

Cmill-A5 5 Axis Dental Milling Machine

Model NO.
Cmill-A5 5 Axis Dental Milling Machine
Delivery:
FOB
Minimum order quantity:
1 set
Quantity:
Description

A5 is a table-top, 5-axis, numerically controlled milling/grinding machine, very easy to use, with 5 axes interpolated continuously. It can mill almost any dental item (crown, bridges, models, full dentures, etc.) in any “soft” material (wax, PMMA, PEEK, other resins, composites, zirconia, aluminium , etc.) or grind hard materials such as ceramics, lithium disilicate, etc.

A5 – TECHNICAL SPECIFICATIONS

Open system

Use of standard STL files in input for the best compatibility with other components of the system. No commitment to use our materials / tools and no mandatory yearly software updating: it will work forever even if not updated. And you can also decide your colour (RAL table) or in carbon fibre.

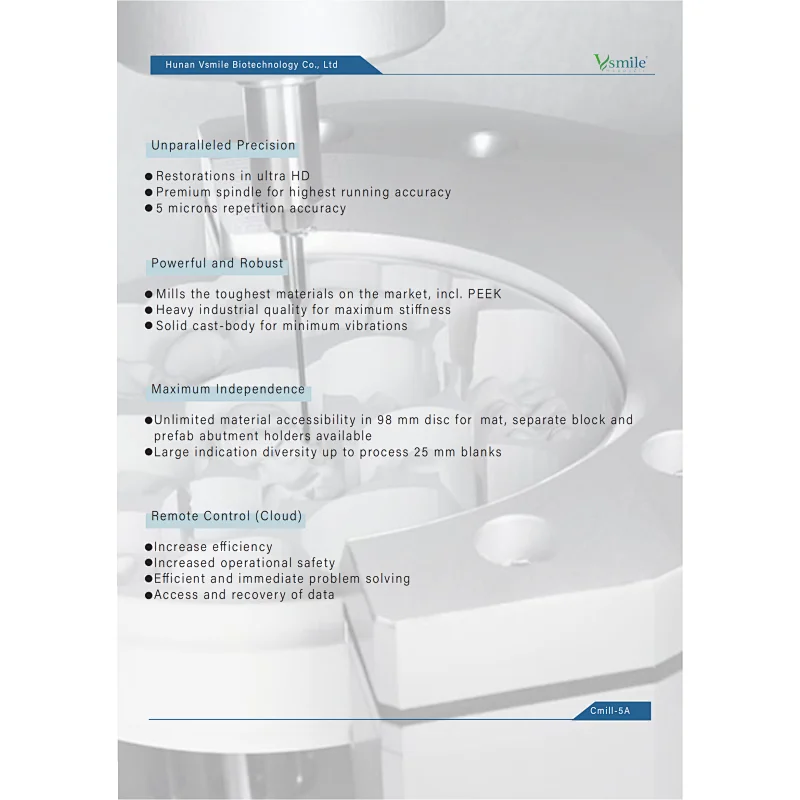

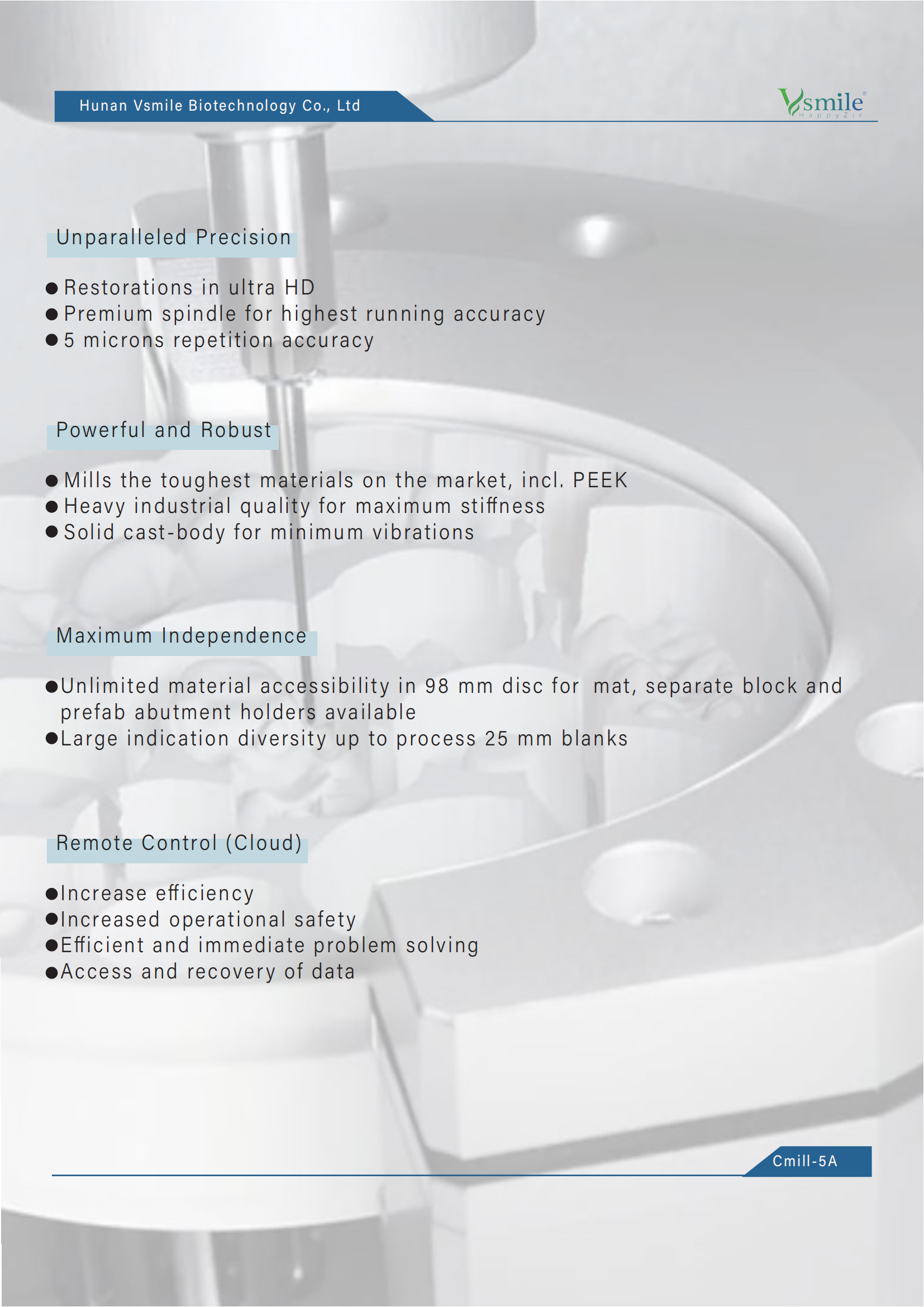

The Highest Precision

Movement on XYZ axes with precision ball screws and backlash recovery, directly driven by brushless motors with precision encoders for continuous position check.
The 2 rotary axes play with the same motors and zero backlash harmonic drive gearboxes.

5 Axes
Continuous Interpolation

5 axes managed in continuous are needed for modern implantology, which places implants in the optimum position and optimum angle, with no restriction. For simpler jobs, 5 axes are often useful to reduce the blank thickness (less time and less consumption of materials and tools).

Cloud

Thanks to Vsmile platform, the client can manage his milling machine from any place in the world – by browser / App and a PC or tablet or smartphone – likes he does by the touch screen monitor of the machine itself. In addition to that, the platform offers several additional services, such as remote diagnosis and maintenance, info on preventive maintenance, etc. and even the possibility of exchanging work between laboratories, to cope with a high workload.

BQ

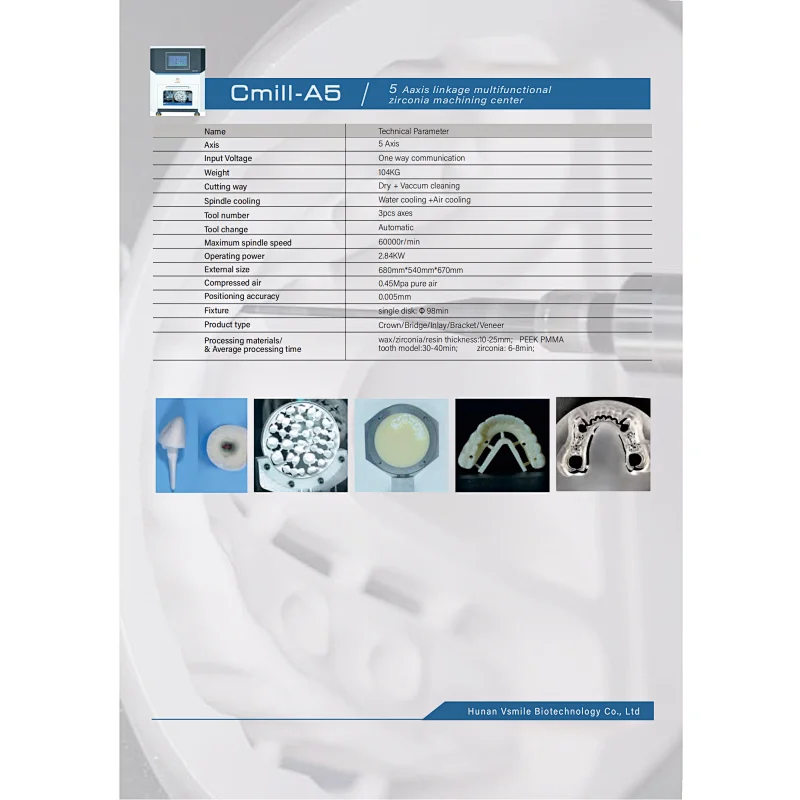

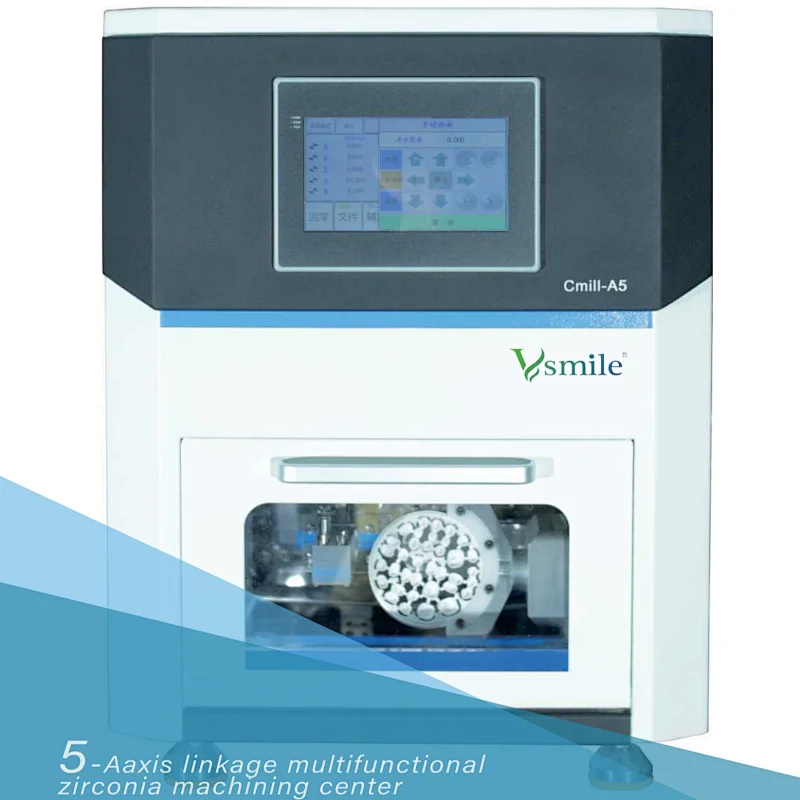

Cmill-A5

/

5 Axis linkage multifunctional zirconia machining center

Name

Technical Parameter

Axis

5 Axis

Input Voltage

One way communication

Weight

104KG

Cutting way

Dry + Vaccum cleaning

Spindle cooling

Water cooling +Air cooling

Tool number

3pcs axes

Tool change

Automatic

Maximum spindle speed

60000r/min

Operating power

2.84KW

External size

680mm*540mm*670mm

Compressed air

0.45Mpa pure air

Positioning accuracy

0.005mm

Fixture

single disk: S 98min

Product type

Crown/Bridge/Inlay/Bracket/Veneer

Processing materials/

wax/zirconia/resin thickness:10-25mm; PEEK PMMA

& Average processing time

tooth model:30-40min; zirconia: 6-8min;
