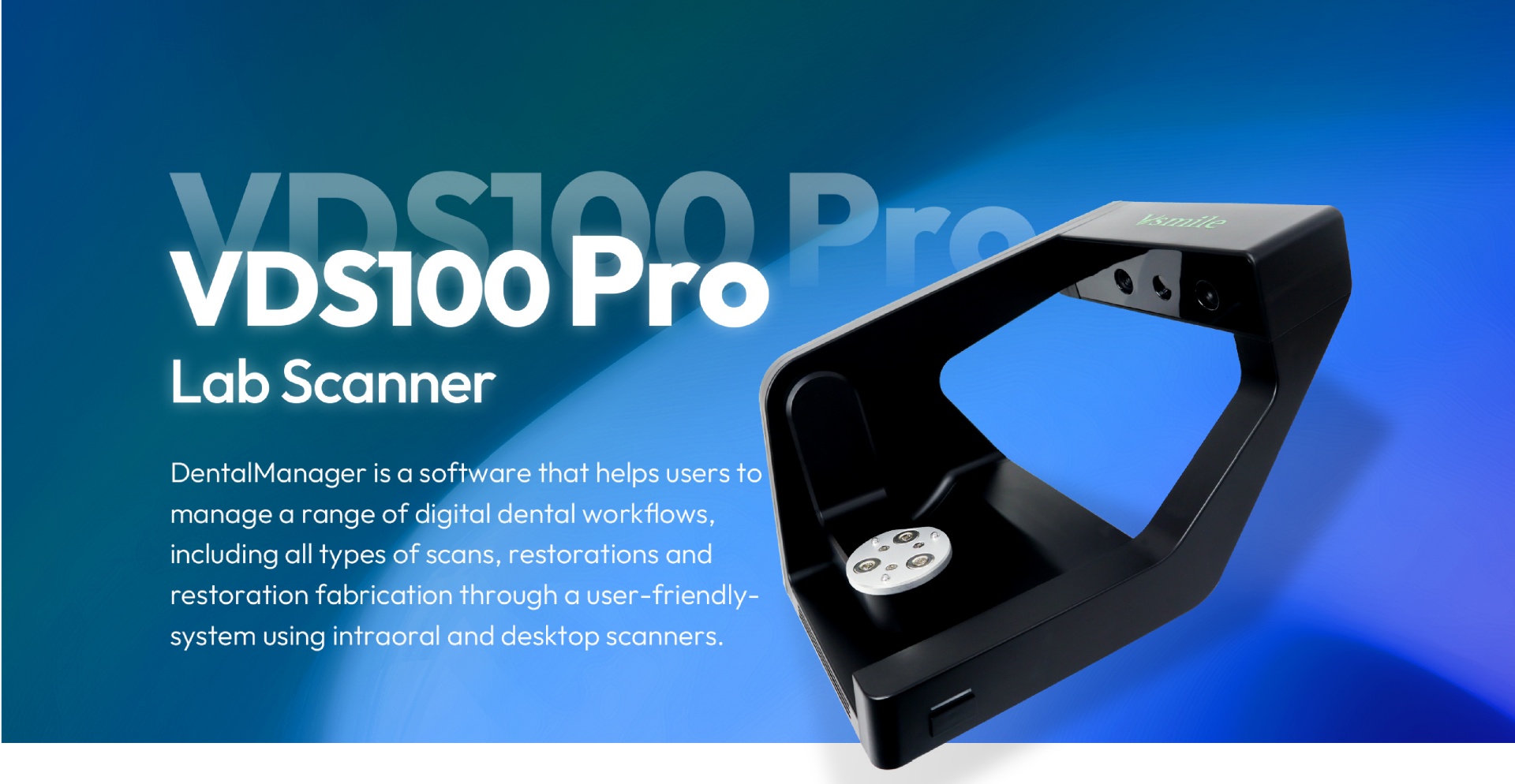

CAD CAM Digital Laboratory Lab Desktop Dental Scanner
VDS100 Pro
VDS100 PRO Desktop scanner is specially designed to provide solution for dentistry with expertise, the process of calibration and scan are fully automatic. Scanner brings precise 3D scanning and effective order management, providing the customers with a simple and intuitive workflow. It supports multiple dental scan applications, including, abutment, die, plaster model,impression, articulator.
Quantity
VDS100 PRO Desktop scanner is specially designed to provide solution for dentistry with expertise, the process of calibration and scan are fully automatic. Scanner brings precise 3D scanning and effective order management, providing the customers with a simple and intuitive workflow. It supports multiple dental scan applications, including, abutment, die, plaster model,impression, articulator.| Category | VDS100 PRO | VDS100 PRO+ |
| Upper/Lower Jaw | 16s Upper/Lower Jaw | 10s Upper/Lower Jaw |
| Occlusion Scan (Bite) | 2s Occlusion | 2s Occlusion |
| Multi-die Scan | 22s for 1–4 dies,26s for 4–8 dies | 13s for 1–4 dies,16s for 4–8 dies |
| Impression Scan | 39s impression scan | 26s impression |
| Full Arch Scan | 34s full arch | 22s full arch |
| Rotation / 360° | “360-degree without blind angle scanning” | “360-degree without blind angle scanning” |
| Implant Scan | “Custom abutments, implant bars and bridges” supported | Supported (abutment models displayed) |
| Ortho Scan | “Orthodontic cases” listed | “Orthodontic cases” listed |
| Texture | Black & white texture | Color texture capture |
| Camera Resolution | 3.0MP ×2 | 3.7MP ×2 |
| Accuracy | <8 μm (stated as <8 μm) | ≤6 μm |
| Output Format | STL, PLY, OBJ | STL, PLY, OBJ |
| Connection | USB 3.0 | USB 3.0 |
| Weight | 5 kg | 5 kg |
| Light Source | LED Blue Light | LED Blue Light |
| Power Supply | DC 24V | DC 24V |
| Size | 37 x 35 x 42 cm | 37 x 35 x 42 cm |
| Software | Dental Link | Dental Link |
