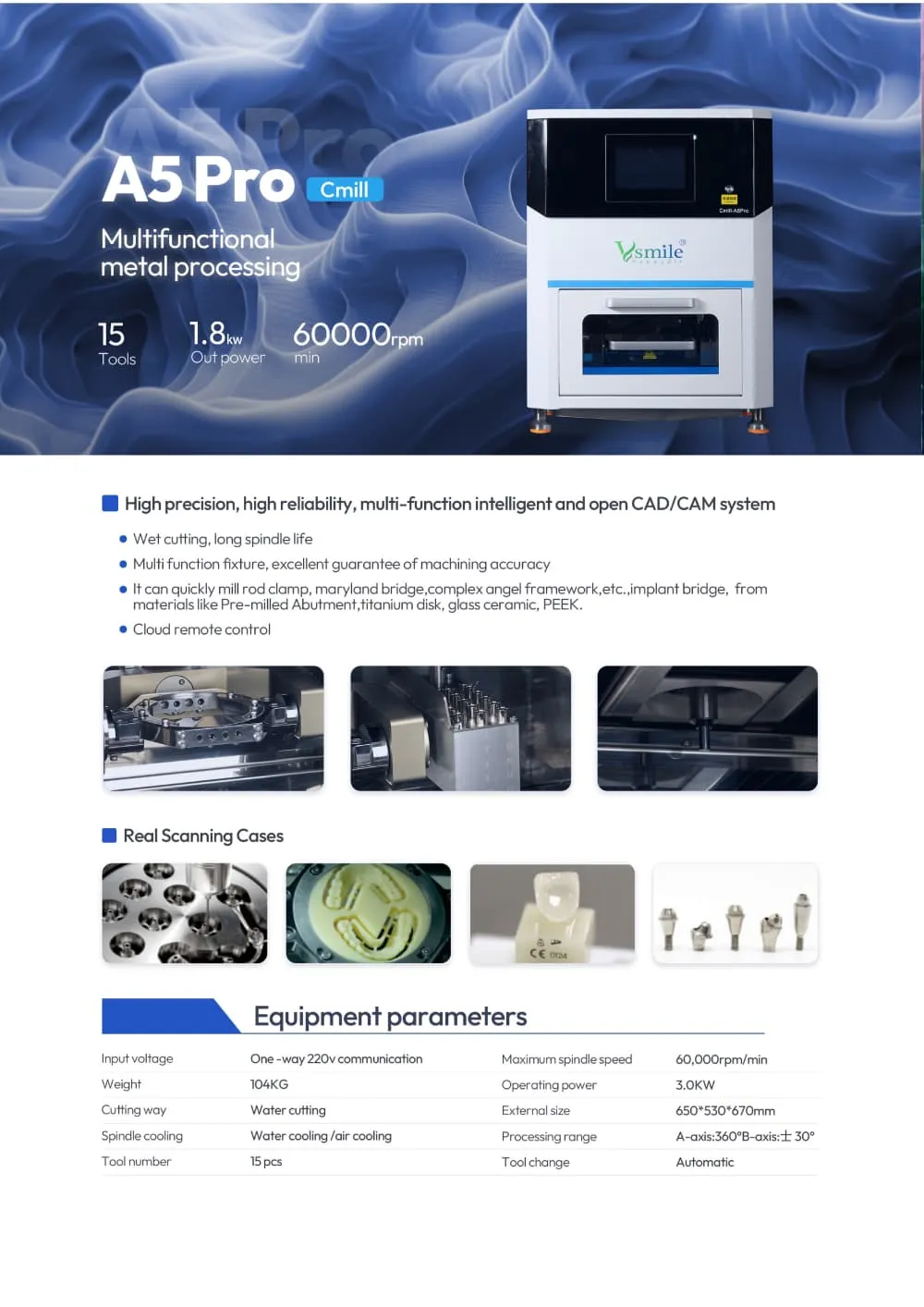

Cmill-A5 pro Axis Dental Milling Machine
Description
A5 pro is a table-top numerically controlled milling/grinding machine, very easy to use. It can mill almost any dental materials, such as tianium, cocr, peek, glass ceramic, premill, zirconia block.) etc.
A5 PRO – TECHNICAL SPECIFICATIONS
Open system
Use of standard STL files in input for the best compatibility with other components of the system. No commitment to use our materials / tools and no mandatory yearly software updating: it will work forever even if not updated. And you can also decide your colour (RAL table) or in carbon fibre.
The Highest Precision
Movement on XYZ axes with precision ball screws and backlash recovery, directly driven by brushless motors with precision encoders for continuous position check.
The 2 rotary axes play with the same motors and zero backlash harmonic drive gearboxes.
A5 PRO 5Axes
Continuous Interpolation
5 axes managed in continuous are needed for modern implantology, which places implants in the optimum position and optimum angle, with no restriction. For simpler jobs, 5 axes are often useful to reduce the blank thickness (less time and less consumption of materials and tools).
Cloud
Thanks to Vsmile platform, the client can manage his milling machine from any place in the world – by browser / App and a PC or tablet or smartphone – likes he does by the touch screen monitor of the machine itself. In addition to that, the platform offers several additional services, such as remote diagnosis and maintenance, info on preventive maintenance, etc. and even the possibility of exchanging work between laboratories, to cope with a high workload.
