Vsmile Milling Burs Compatible with Amann Girrbach ®

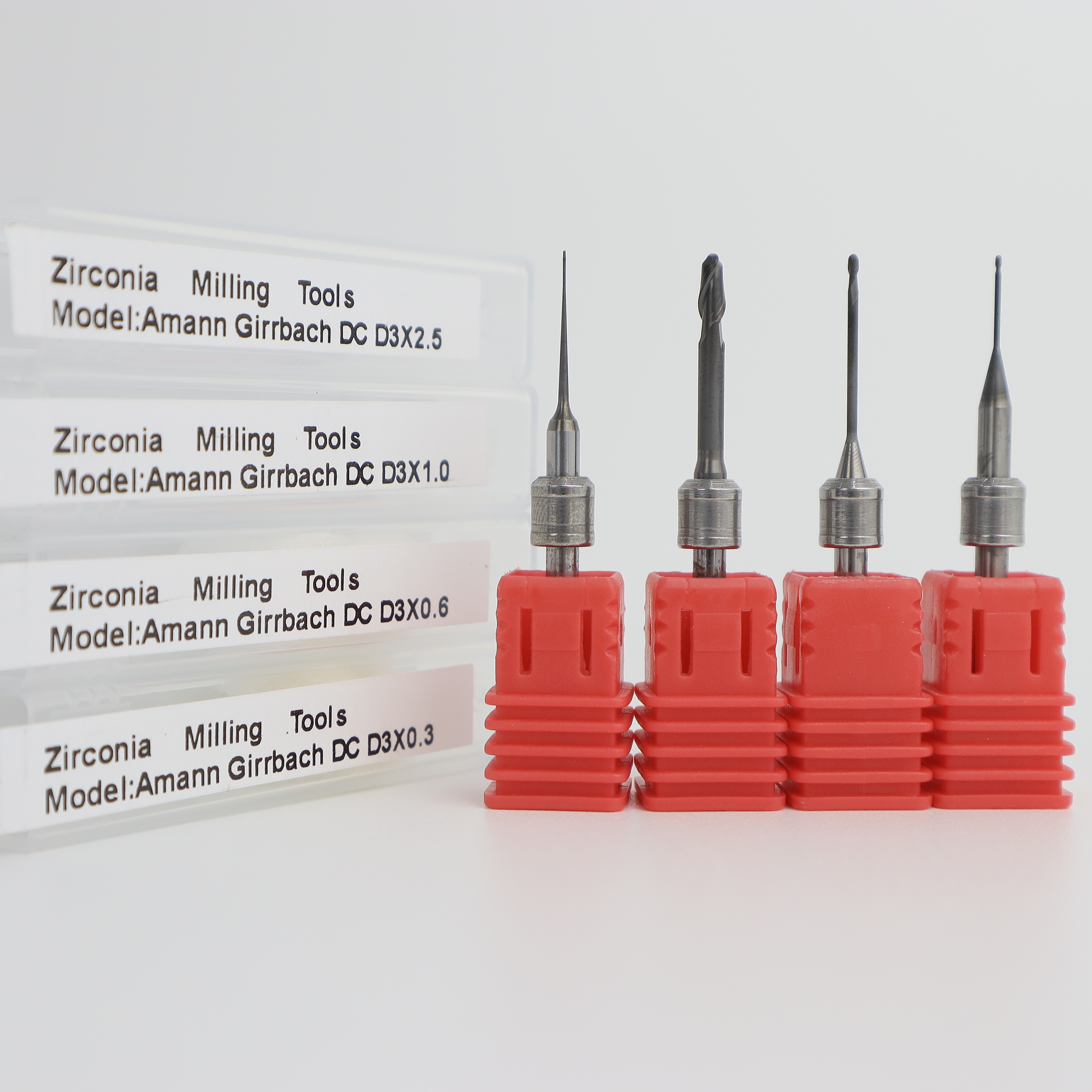

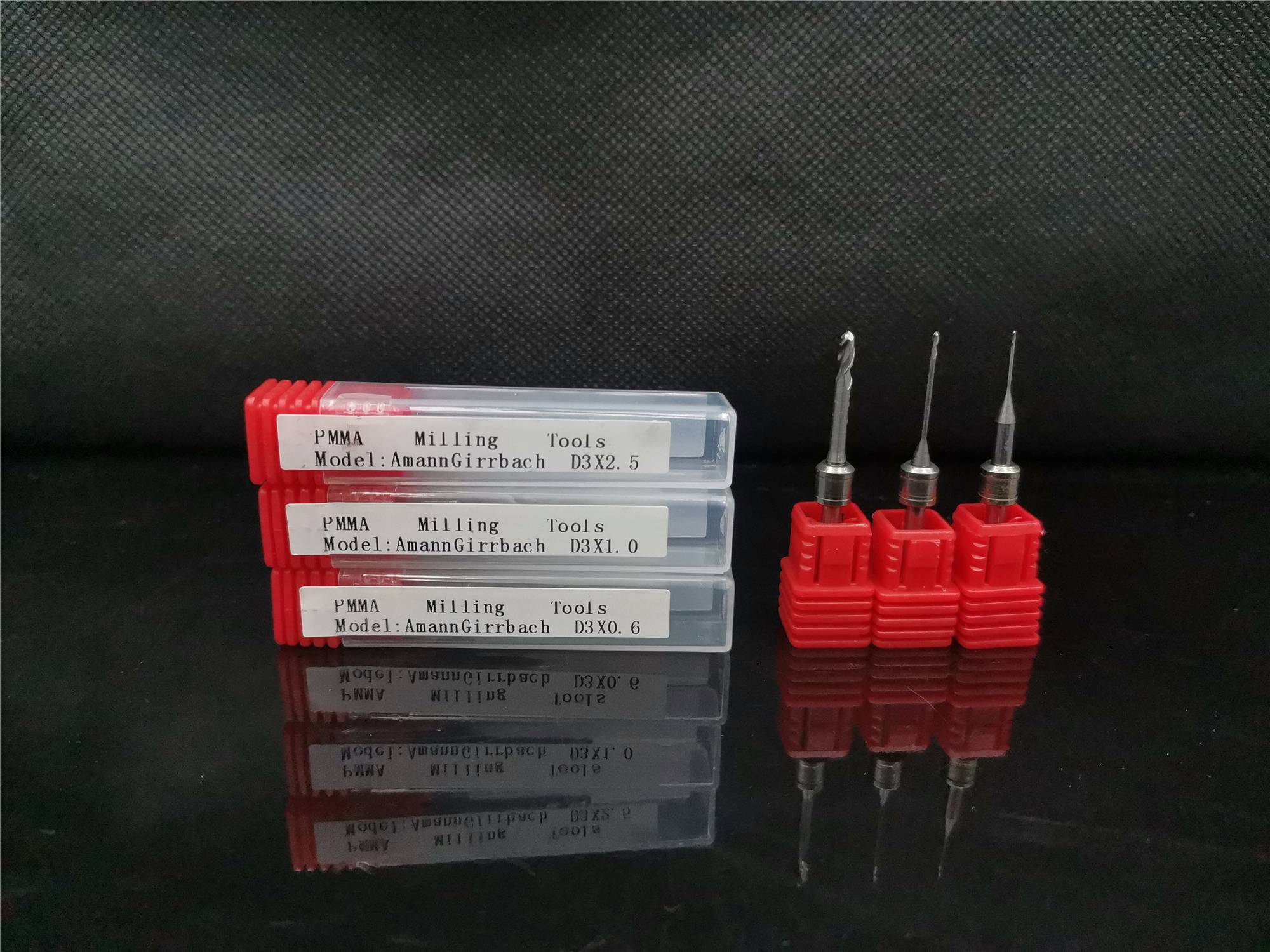

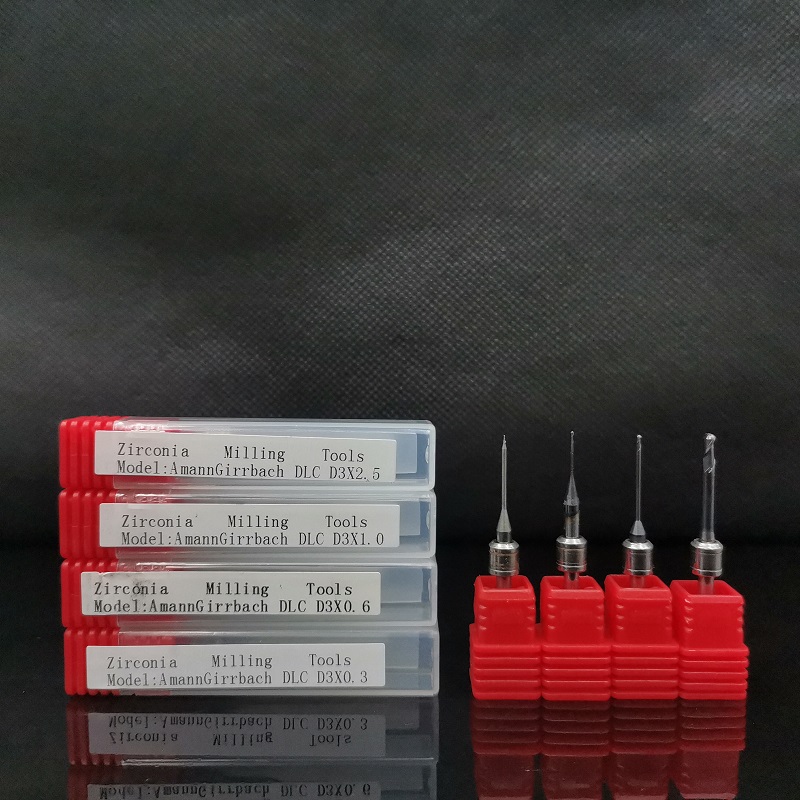

Milling Burs for Zirconia/PMMA/WAX/Peek, sizes from 0.3m,0.6mm,1.0mm and 2.5mm , Diamond coating Amann Girrbach milling burs

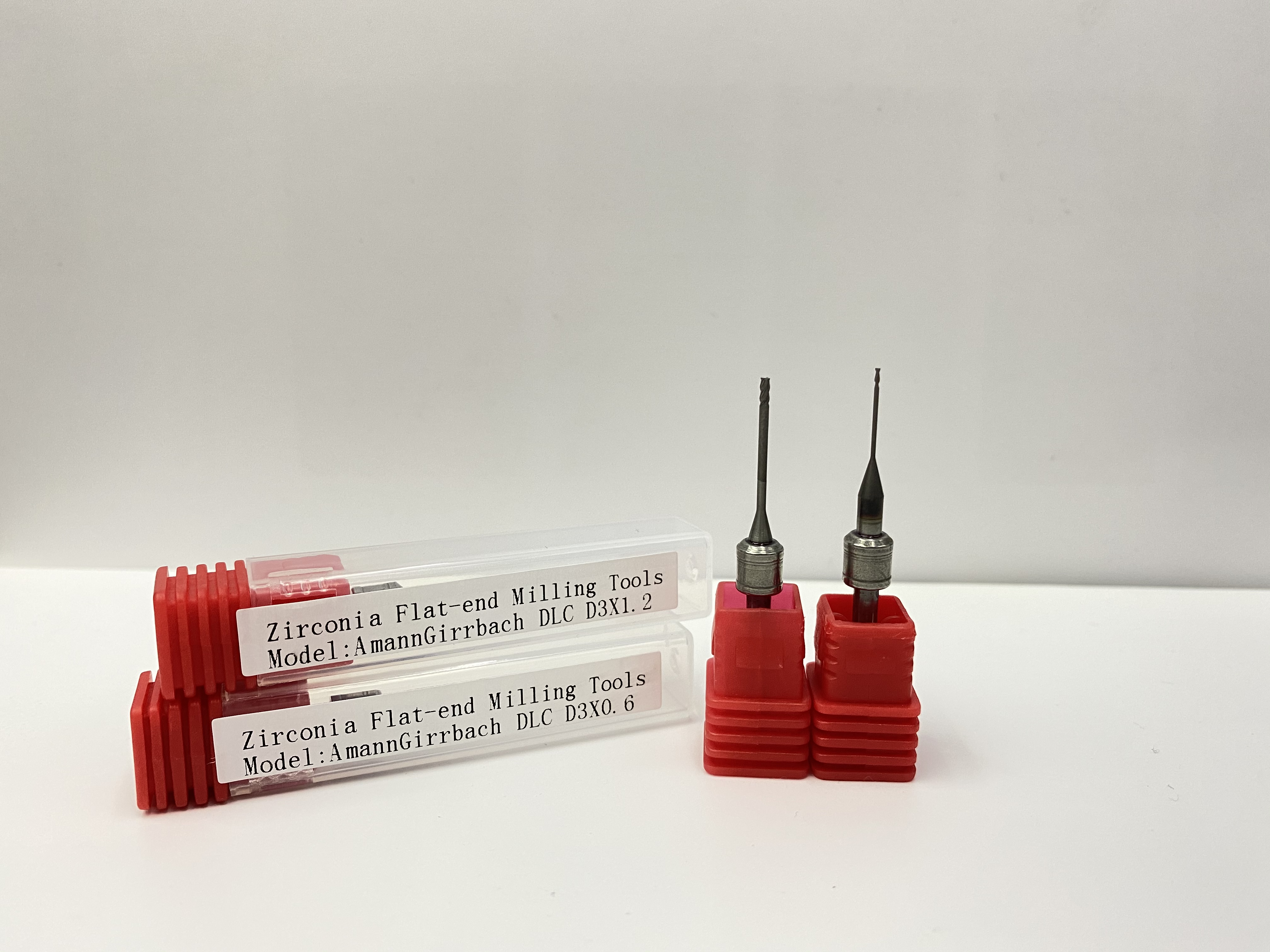

Flat end 0.6mm, 1.2mm for Zirconia/PMMA/WAX/Peek

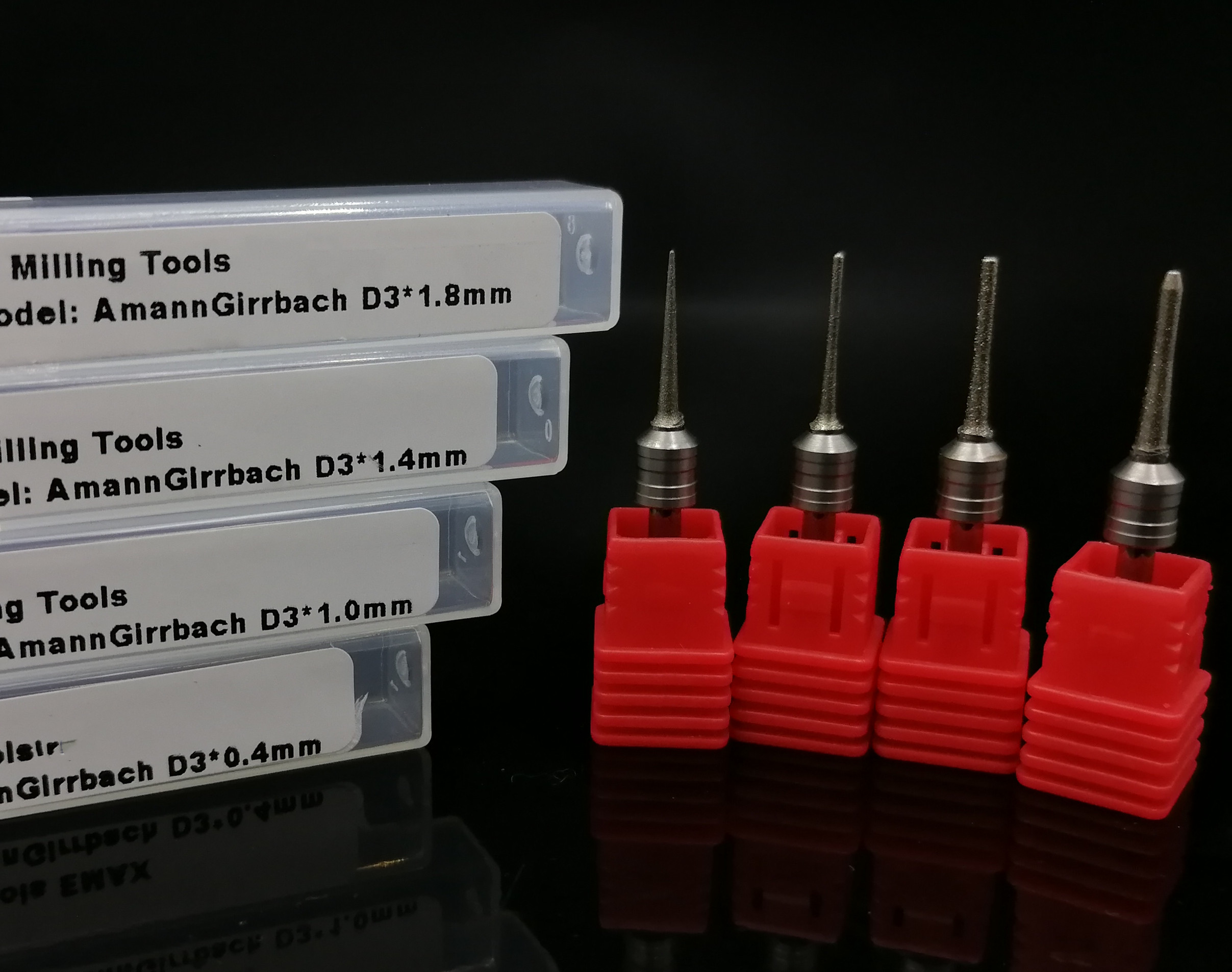

For Glass Ceramic sizes 0.4mm,1.0mm,1.4mm,1.8mm
For Titanium CoCr sizes 1.0mm ,2.0mm
Vsmile Milling Burs Amann Girrbach ® Compatible
VsmileHigh performance milling tools designed and engineered specifically for the digital dentistry sector
| Shank Dia.(mm) | 3.0 | 3.0 | 3.0 | 3.0 |
| Head Dia.(mm) | 2.5 | 1.0 | 0.6 | 0.3 |
| Overlength(mm) | 47 | 47 | 47 | 47 |
| Shank Dia.(mm) | 3.0 | 3.0 |
| Head Dia.(mm) | 1.2 | 0.6 |
| Overlength(mm) | 47 | 47 |
| Shank Dia.(mm) | 3.0 | 3.0 | 3.0 | 3.0 |
| Head Dia.(mm) | 1.8 | 1.4 | 1.0 | 0.4 |
| Overlength(mm) | 43 | 43 | 43 | 43 |
| Shank Dia.(mm) | 3.0 | 3.0 |
| Head Dia.(mm) | 2.0 | 1.0 |
| Overlength(mm) | 43 | 43 |
Model:
Amann Girrbach Ceramill Matik/ Motion 2/Motion 3
Coating:
CVD German coating / DC （Diamond Coating） / DLC（Diamond-Liked Coating ）/ NC(PMMA) / TiSiN(Metal material)
Material:
TungstenSteel
Packaging:
Individually packing
Characteristics:
1. DLC coating mlling tool can mill 120 to 150 units teeth.
2. DC coating milling tool can mill 300 to 500 units teeth.
3.CVD coating mlling tool can mill 500 to 800 units teeth.
3. All our burs are made by the optimal tungsten carbide material and stainless steel.
Explore Our Range of Cutting-Edge Milling Burs
Amann Girrbach CAD/CAM Dental Milling Bur
- Long life span
- Excellent surface quality
- Precise milling performance and results
Tool to the bottom line
We understand the implication of tool life on the financial bottom line. This is why our tools have been designed to last longer resulting in a lower cost per crown.
Tools to machines
In order to support end users to create the optimal performance we have worked with Amann Girrbach authorised software providers to develop downloadable ‘tool sets’ to ensure that machines are calibrated to Vsmile Digital tools.
Restoration to Mouth Increased
precision in milling restorations will result in less need for dentists to complete chair-side modifications - therefore a better fit.
Restoration to CAD Design
Our tools mill restorations highly precisely and have been engineered to result in the highest likeness to the CAD design.
Vsmile's R&D department has over 10 years of experiences in preparing andprocessing zirconia powders.These experiences are reflected in the unique manufacturing and coloring process.The result is
